Brake Pedal Forward Mount and Master Cylinder Combo
Forward Swing Mount Brake and Clutch Pedal Assembly
Ratio 6.25 to 1
Pedal Length: 12.05”
Features lightweight Aluminum frame and I-Beam forged pedal arms
Non-skid pedal pads can be adjusted Laterally for driver preference and clearance.
Balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness.
Pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through entire pedal range of travel.
Balance bar can be locked in place with included jam nut or used with optional remote cable systems.
Pedal assembly accepts any Wilwood vertical mounted flange single outlet master cylinder

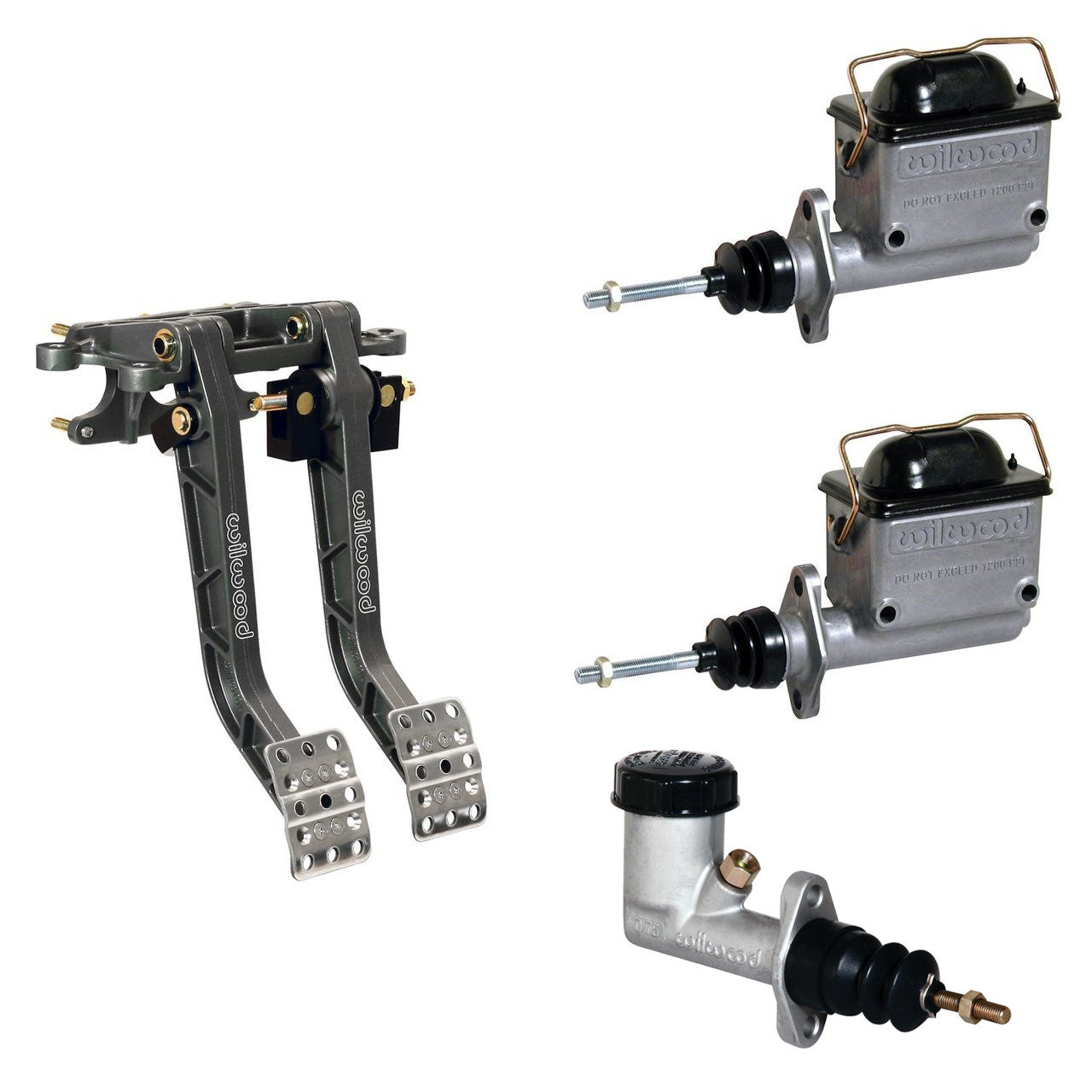

Includes:
Wil 340-11295 Pedal Assembly
Wil 260-15098 Girling Master Cylinder
Choice of two Wilwood Master Cylinders 3/4", 7/8", and/or 1"
Bryke Racing Part# Wil 340-11295k
